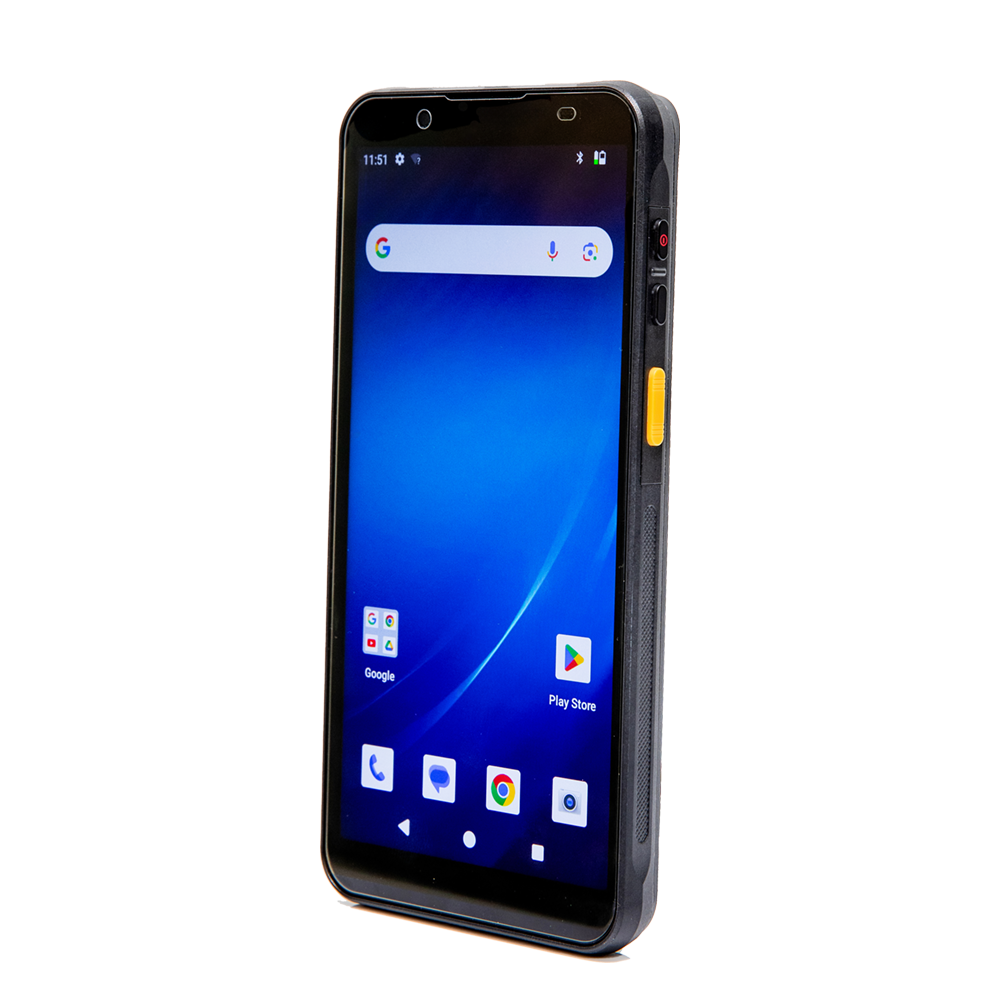

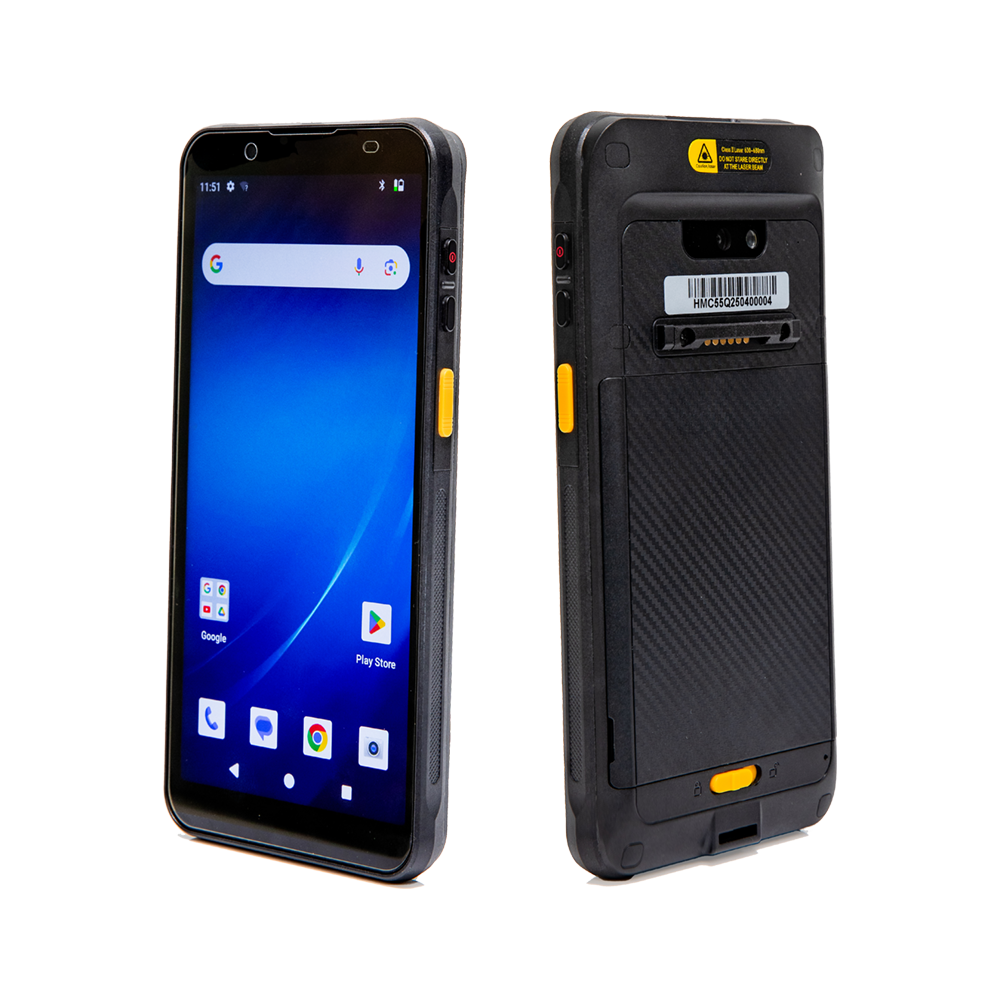

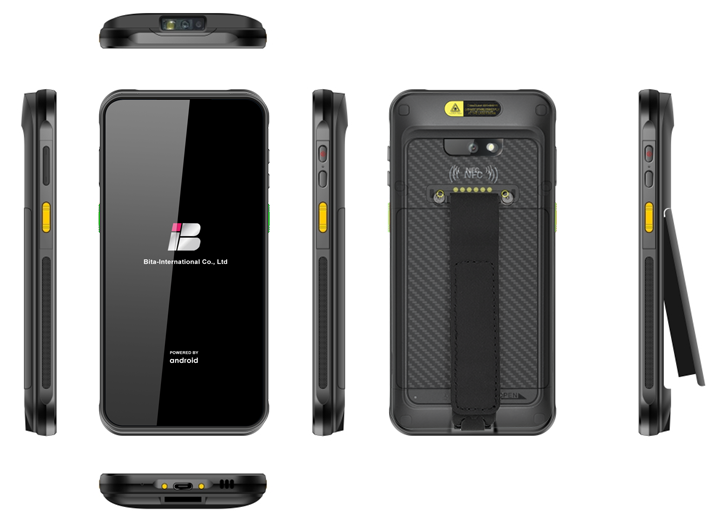

RUGGED MOBILE COMPUTER

MC55

This is our newly launched 5G high-performance mobile computer. The top-of-the-class configuration comprises advanced Android 14, Qualcomm Snapdragon™ processor, and optional ultra-large memory. It integrates barcode scanning, NFC, dual camera, and multiple wireless data connections, as well as 6-inch HD screen, high-capacity removable battery and IP67 sealing. It can bring a new level of cost efficiency to a broad range of industries including retail, logistics, and warehousing.

Android

1D Barcode

2D Barcode

Bluetooth

Camera

GPS

NFC

Wifi

Feature Specification Accessories Download Inquiry

Feature

Specification

Physical Characteristics

Dimensions

161.0 x 77.8 x 15.5mm / 6.34 x 3.06 x 0.61 in.

Weight

287g / 10.01oz. (device with battery)

Keypad

Power key, 2 scan keys, volume (+/-) keys

Battery

5000mAh removable main battery, support QC3.0 and RTC

Display

6-inch high definition display (18:9), 1440 x 720

Touch Panel

Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported.

Sensor

G_sensor, proximity sensor, light sensor, geomagnetic sensor, gyroscope

Notification

Sound, LED indicator, vibrator

Audio

2 microphones, 1 for noise cancellation; 1 speaker; 1 receiver

Card slot

1 for SIM card, 1 for SIM or TF card

Interfaces

USB Type-C, USB 3.1, OTG

Performance

CPU

Qualcomm Snapdragon™ 八核, 2.4GHz

RAM+ROM

Standard 4GB+64GB, compatible with 6GB+128GB, 8GB+256GB

Expansion

MicroSD (TF) card can be expanded to 256G (support SDXC512G)

Developing Environment

Operating System

Android 14

SDK

Software Development Kit

Language

Java

Tool

Eclipse/Android Studio

User Environment

Operating Temperature

-20 ℃~+50 ℃

Storage Temperature

-40 ℃~+70 ℃

Humidity

5%RH - 95%RH (non condensing)

Drop Specification

Multiple 1.5m / 4.92ft. drops (at least 20 times) to the concrete across the operating temperature range

Tumble Specification

1000 x 0.5m / 1.64ft. falls at room temperature

Sealing

IP67 per IEC sealing specifications

ESD

± 15KV air discharge, ± 8KV conductive discharge

Communication

WLAN

Support 802.11 a/b/g/n/ac/ax-ready, 2.4G/5G dual-band, IPV4, IPV6, 5G PA
Fast roaming: PMKID caching, 802.11r, OKC
Operating Channels: 2.4G (channel 1~13), 5G (channel36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165),
Depends on local regulations Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI-PSK—EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2,
PEAP-LTS, PEAP-GTC, WPA3-Enterprise, WPA3-Enhanced Open, WPA3 Easy Connect, WPA3-Personal, etc.

WWAN

2G: 850/900/1800/1900MHz
3G: 850/900/1900/2100MHz
4G: B1/B2/B3/B5/B7/B8/B20/B28A/B28B/B34/B38/B39/B40/
B41
5G: N1/N3/N8/N28/N41/N78/N79

Vo-LTE

Support Vo-LTE HD video voice call

Bluetooth

Bluetooth 5.1

GNSS

GPS / AGPS, GLONASS, BeiDou, Galileo, internal antenna

Camera

Front Camera

5MP

Rear Camera

16MP Autofocus with flash

NFC

Frequency

13.56 MHZ

Protocol

ISO14443A/B,ISO15693,NFC-IP1,NFC-IP2

Chips

M1 card (S50, S70), CPU card, NFC tags

Range

2-4 cm

Barcode Scanning (Optional)

2D Scanner

OPTICON MSI-5200 Engine

1D Symbologies

UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS

2D Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX)

2025-07-08

Accessories

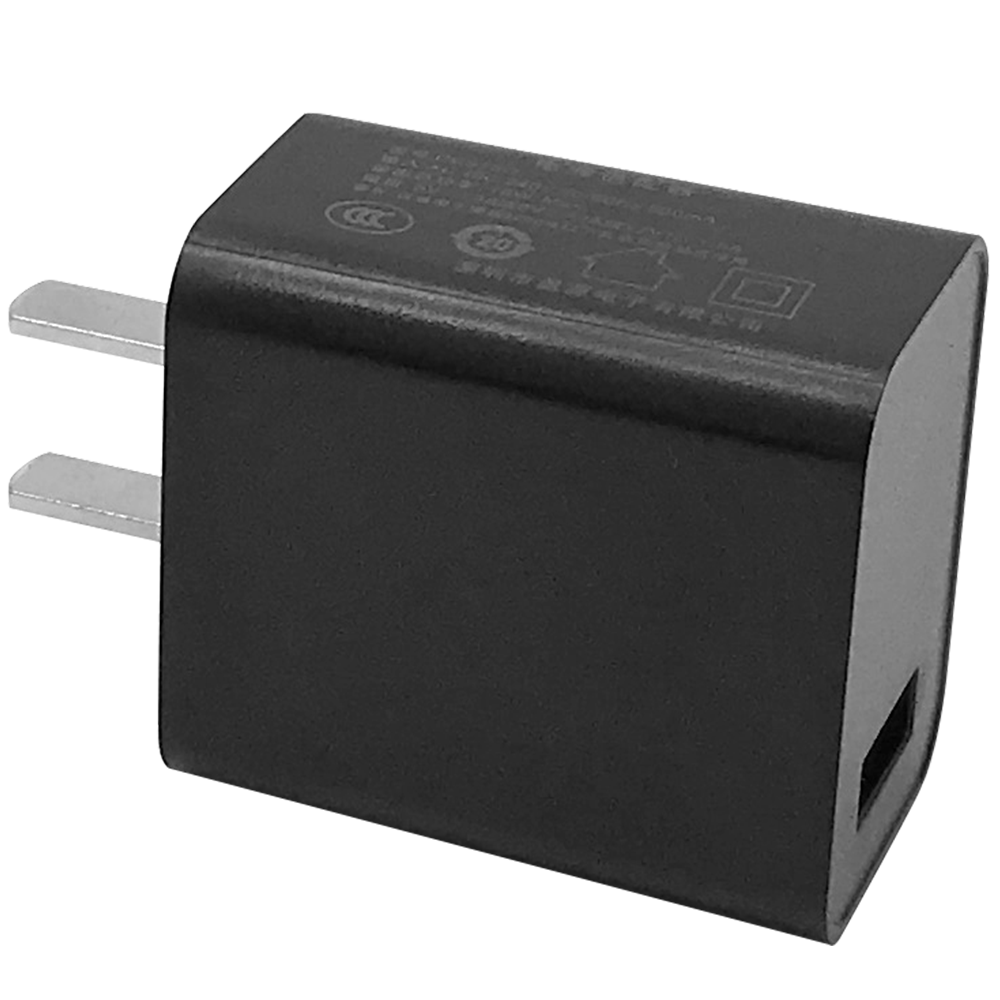

QC Adapter

8E00-00040240

MC55 QC Adapter(CN Type)
100-240V input, 5V3A/12V1.5A/9V2A output, and Type-C USB cable 8E00-00041100 support used

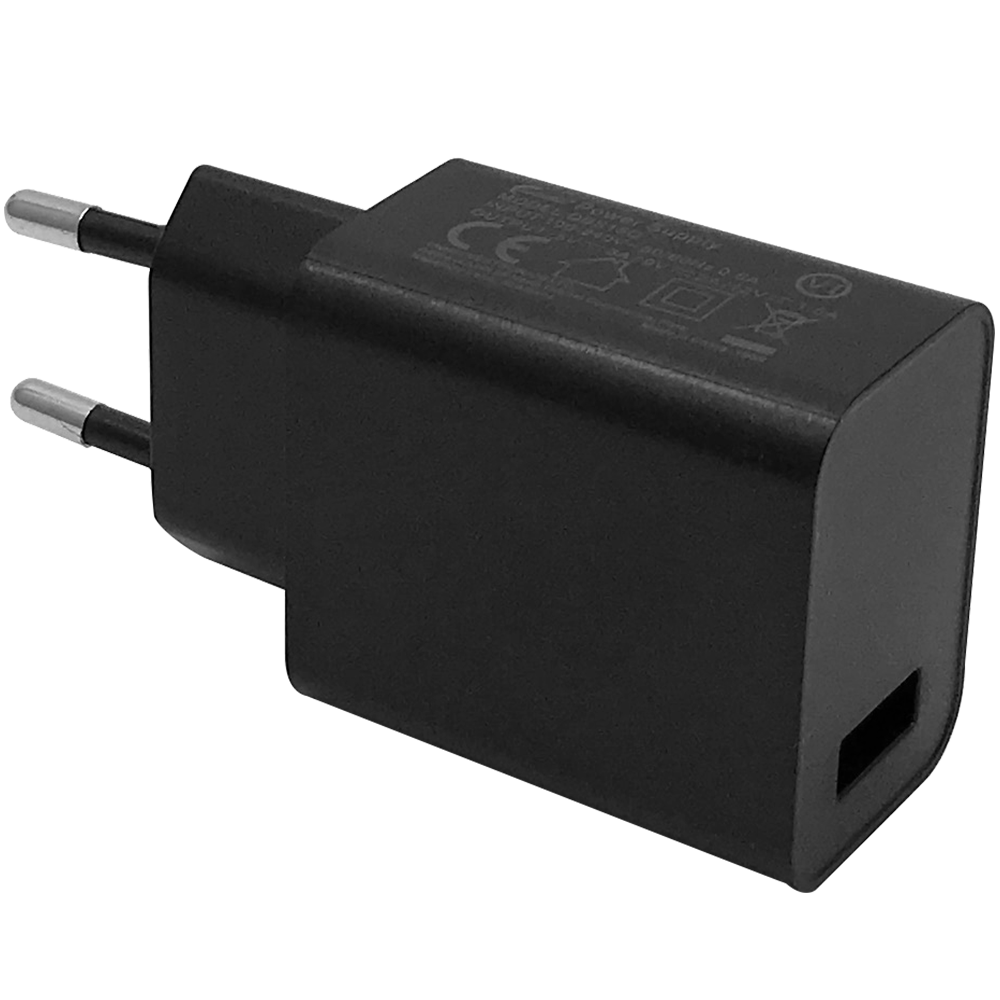

QC Adapter

8E00-00040220

MC55 QC Adapter(EU type)
100-240V input, 5V3A/12V1.5A/9V2A output, and Type-C USB cable 8E00-00041100 support used

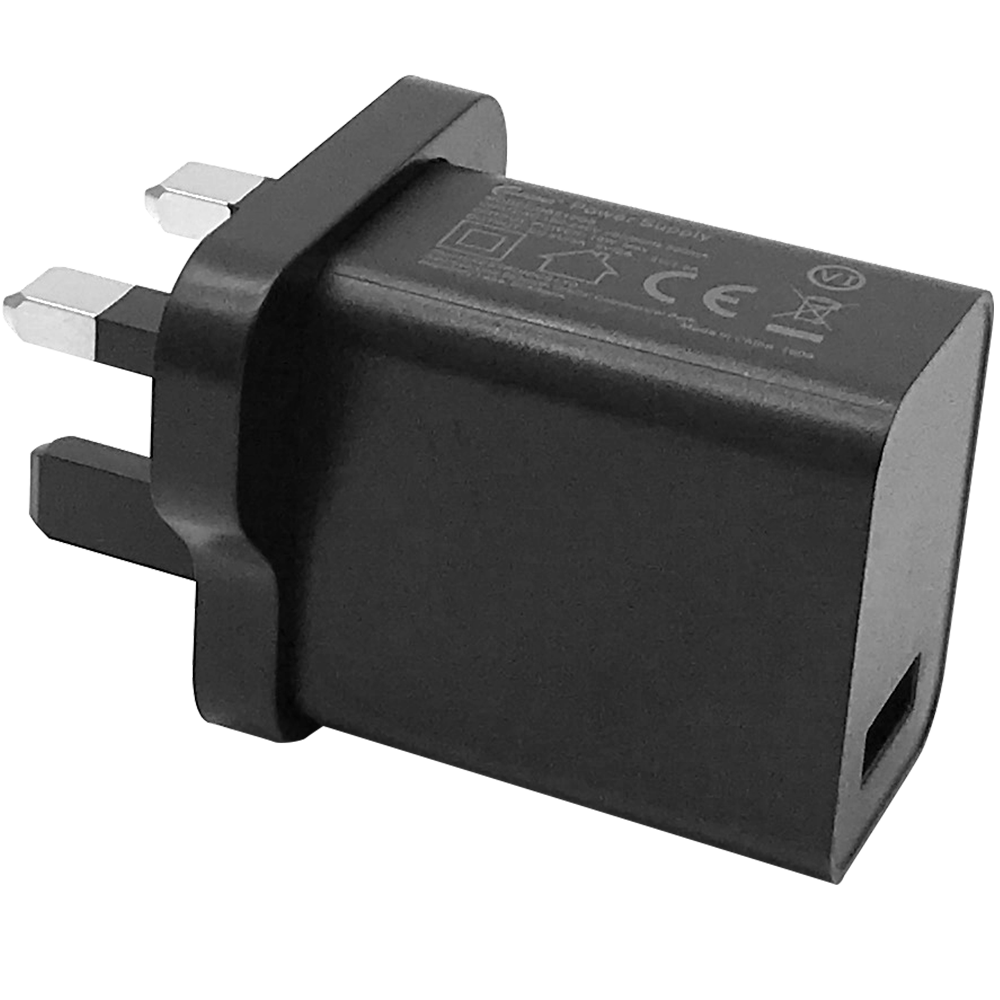

QC Adapter

8E00-00040230

MC55 QC Adapter(UK type)
100-240V input, 5V3A/12V1.5A/9V2A output, and Type-C USB cable 8E00-00041100 support used

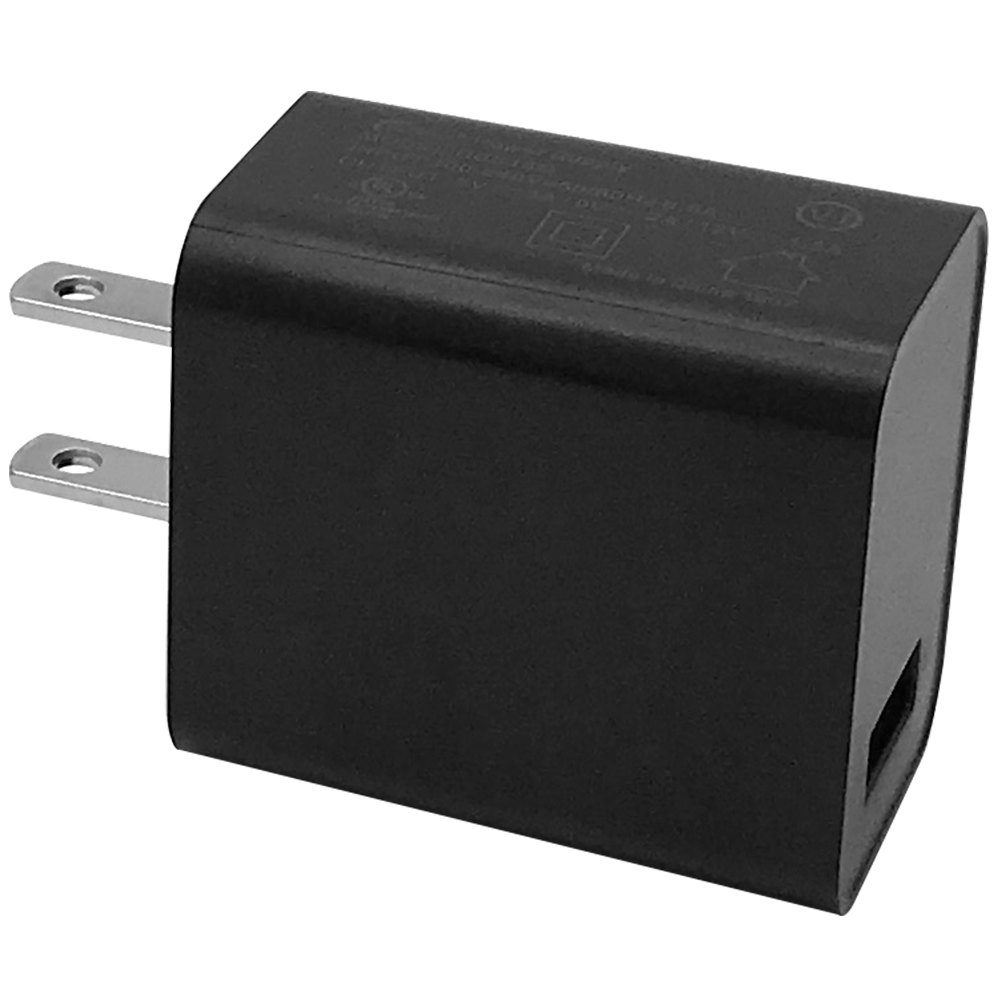

QC Adapter

8E00-00040210

MC55 QC Adapter(US type)
100-240V input, 5V3A/12V1.5A/9V2A output, and Type-C USB cable 8E00-00041100 support used

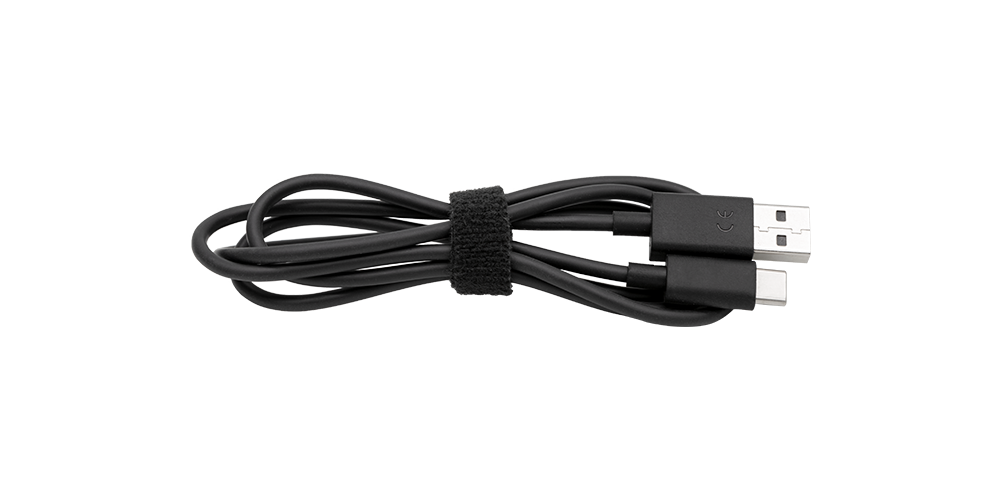

USB cable

8E00-00041100

1.0 meter Type-C USB cable

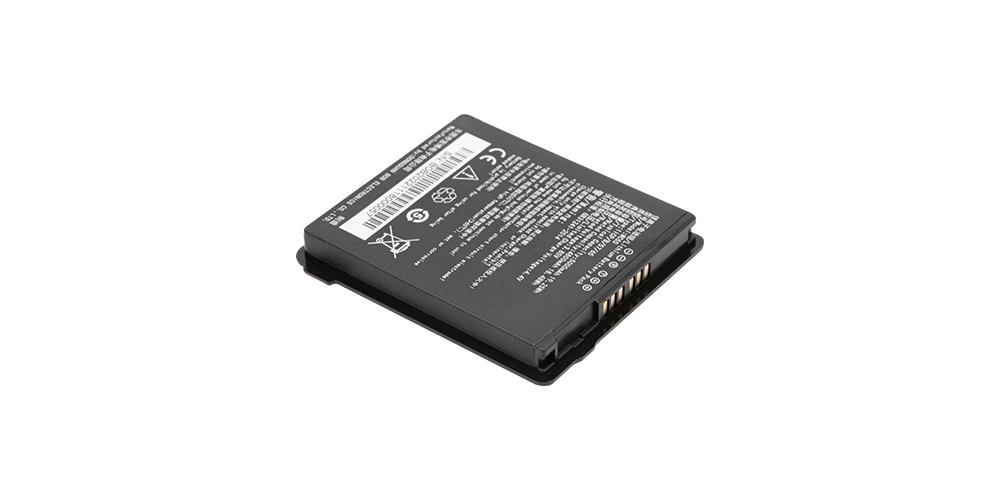

Battery

8EMC-55020100

5000mAh lithium battery, 3.85V voltage output.

Option

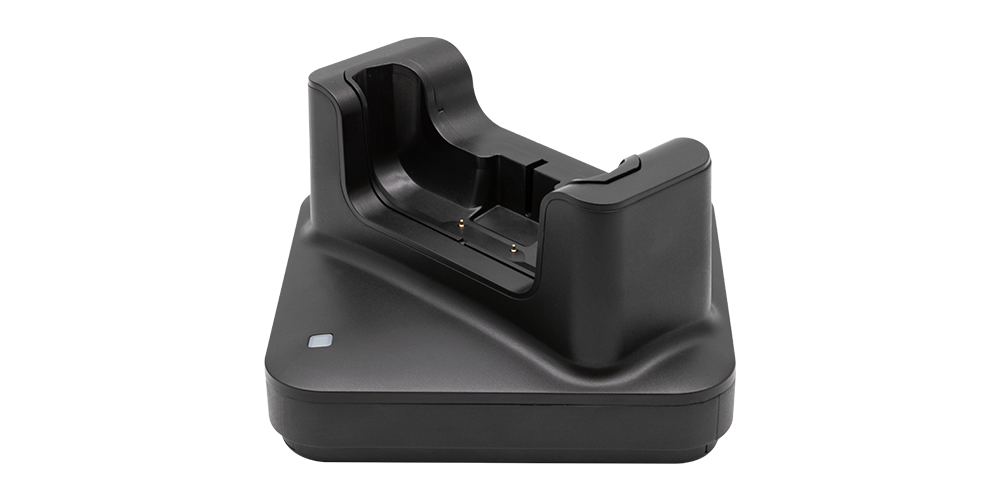

Charging Cradles & Adapters

8EMC-55010110

8EMC-55010110
Single Charging Cradle, charge MC55 device only
The package is included Insert Cover (need adapter purchased separately)

The above two Single Charging Cradles need to use together with the power supply 8E00-00040110/ 8E00-00040120/ 8E00-00040130/ 8E00-00040140 US/EU/UK/Chinese DC power supply

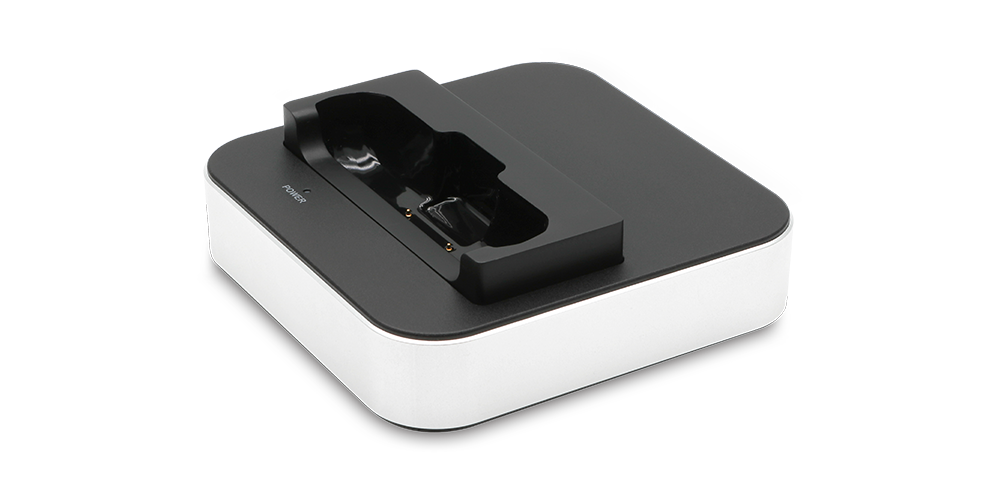

Charging Cradles & Adapters

8EMC-55010120

Single Charging Cradle, Type-C port, charge MC55 device only, use with MC55 QC Adapter

The above Single Charging Cradle needs to use together with the power supply 8E00-00040240/8E00-00040220/8E00-00040230/8E00-00040210 Chinese/EU/UK/US QC Adapter

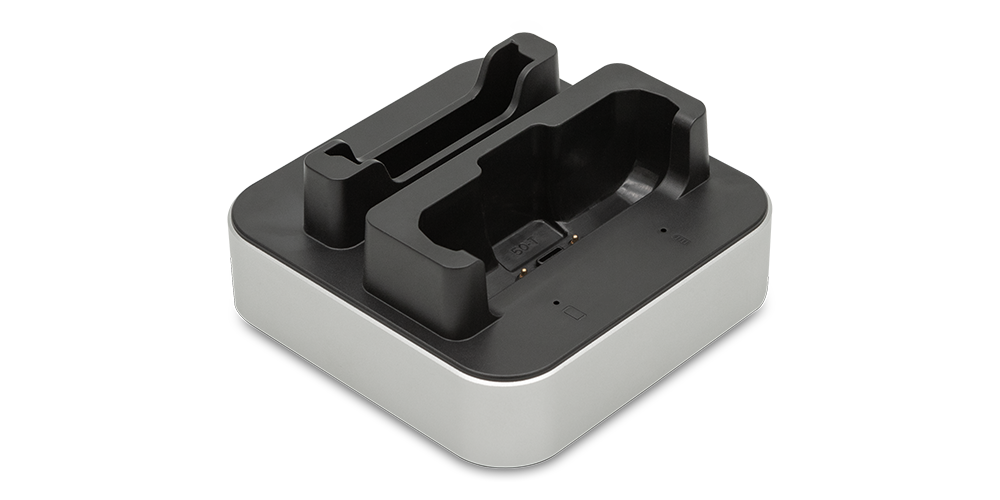

Charging Cradles & Adapters

8EMC-55010130

Single Charging Cradle, Type-C port, charge MC55 device with spare battery, use with MC55 QC Adapter

The above Single Charging Cradle needs to use together with the power supply 8E00-00040240/8E00-00040220/8E00-00040230/8E00-00040210 Chinese/EU/UK/US QC Adapter

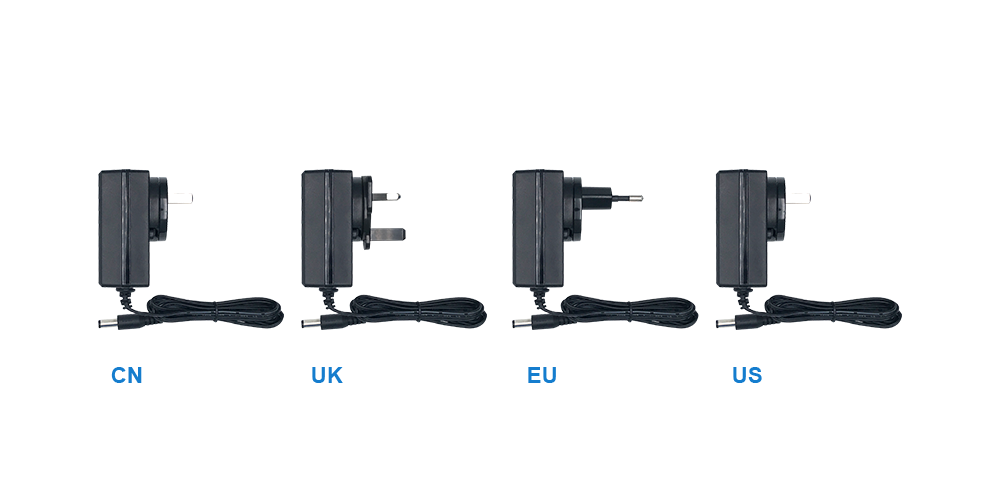

Charging Cradles & Adapters

8E00-00040110/8E00-00040120/8E00-00040130/8E00-00040140

Adapter(US/EU/UK/CN), I/P:100-240V, O/P: 12V2A, DC Adapter
Adapters for MC55 cradle 8EMC-55010110 when charging in MC55 Single Cradle

8E00-00040110 US
8E00-00040120 EU
8E00-00040130 UK
8E00-00040140 CN

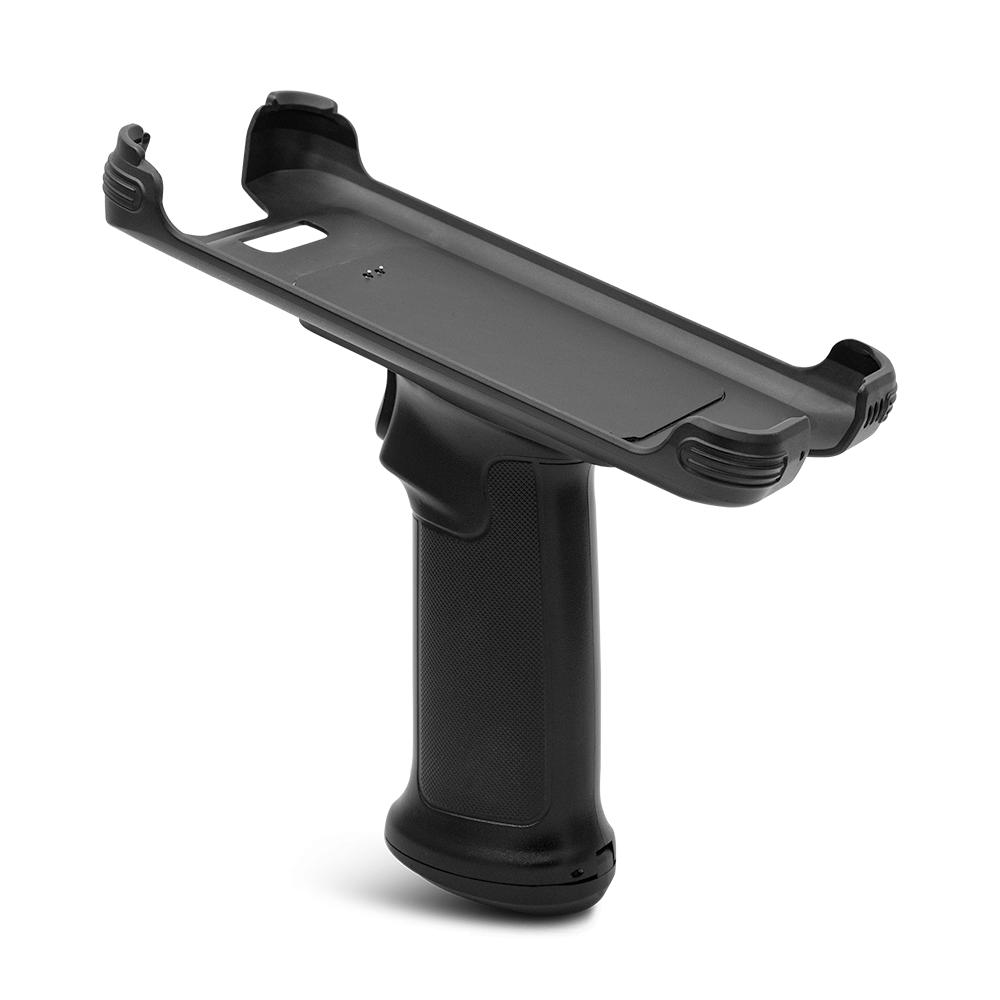

Pistol grip

8EMC-55021100

Snap-On Trigger Handle and Rugged Boot Kit, without pistol battery

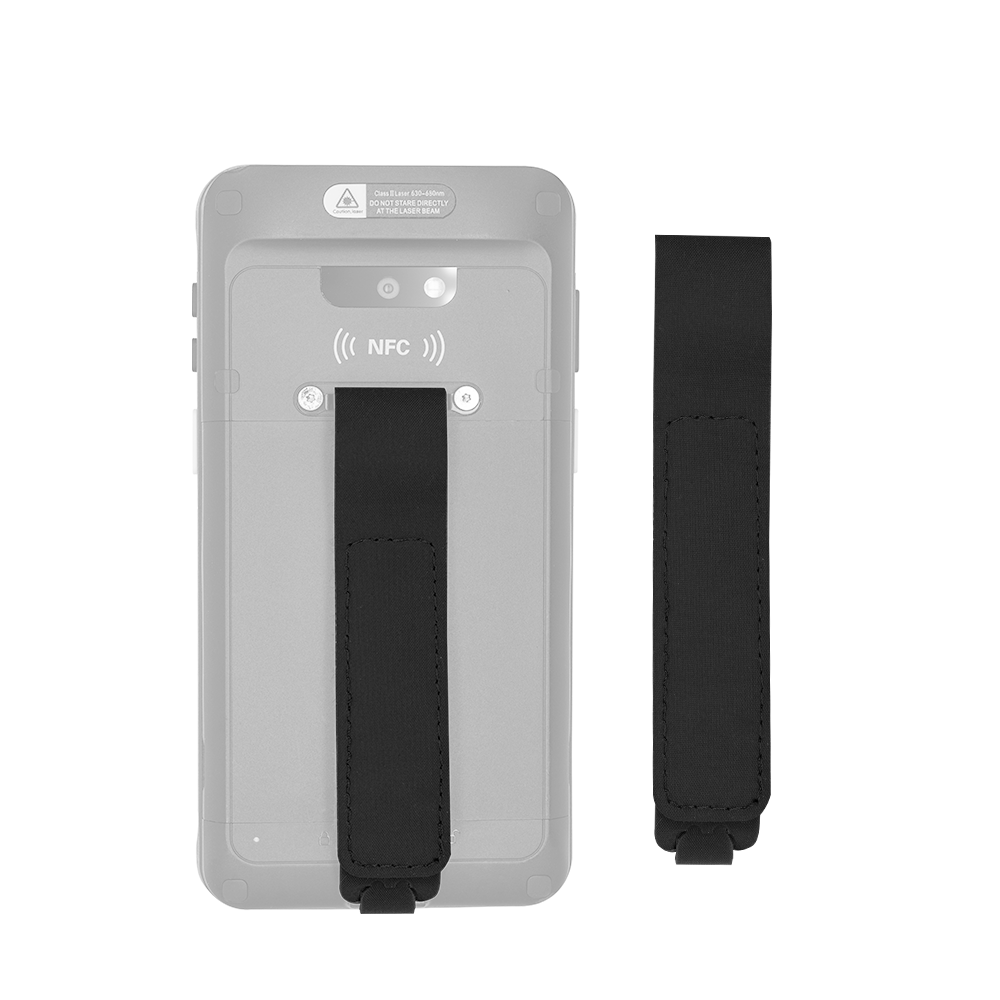

Hand Strap

8EMC-55050000

Hand Strap with buckle
This include 2 pcs screws, 1 pcs wrist strap
Buckle and 1 pcs hand strap.
